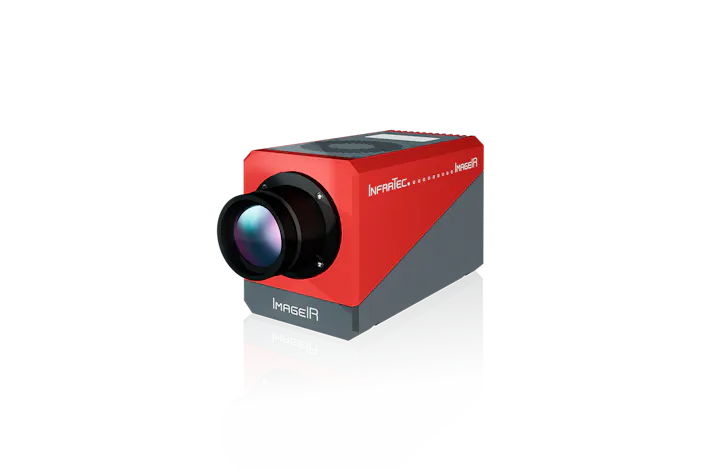

ImageIR® c7300
Radiometric infrared camera in the mid-wave infrared range (1.5 … 5.7) µm
Snapshot detector enables precise image synchronization without motion blur
Precise measurement even at high frame rates up to 180 Hz
Outstanding image quality with a NETD of 15 mK
Low operating costs thanks to MTTF > 28,000 h
Easy integration into existing processes, Plug & Play
Customers Trust InfraTec
Large detector enables highest sensitivity
Analysis of extreme temperature changes and gradients in full frame
Precise detection of smallest temperature differences
Accurate temperature measurements of fast processes
Enables the maintenance-free use over long operating times
Highly precise repeatable data recording; time- and event-controlled
Enables measurement tasks with high object temperatures and spectral thermography
Easy integration into existing systems and processes using a wide range of modern interfaces
For cost-conscious users looking for a compact, high-performance infrared camera with cooled photon detector technology, the ImageIR® compact is the ideal choice. It offers high measurement precision for demanding tasks, while prioritizing cost efficiency over individually optimized camera performance. These cameras come with a fixed configuration focusing on the capabilities that are key to many measurement tasks: reliable radiometric temperature measurement, excellent image quality, high frame rates (snapshot image acquisition), and easy integration into existing processes.
Accurate Recording of Fast-moving Processes
Whether for in-line quality control, the analysis of fast-moving processes, or demanding monitoring tasks in continuous operation, the ImageIR® compact delivers precise thermographic data exactly where it’s needed. The high-performance cooled detectors used enable extremely short integration times. Due to snapshot mode, even moving test objects and dynamic processes can be captured without distortion or interruption.
Reliable in Continuous Commercial Operation
The camera is particularly well-suited for continuous commercial use: Its heavy-duty, long-life cooler – with an average service life of 28,000 hours – enables reliable, cost-effective measurements in 24/7 operation. The compact size, a wide range of mounting options, and low weight make it easy to integrate the ImageIR® compact into systems, test benches, and automation solutions.
Flexible for a Variety of Measurement Tasks
The integrated 5-position filter wheel provides a standard measurement range of -10 up to 1,500 °C, which can be optionally extended to 3,000 °C. Thus, the ImageIR® compact is suitable for a wide variety of applications in industry, research, and monitoring. A wide range of high-quality infrared lenses with fixed focal length is available to accommodate the size of the test objects and the specific details to be analyzed.
The ImageIR® c7300 is suitable for, among other things:
Inline quality control
Analysis of fast and dynamic processes
Continuous monitoring tasks
Automated measurement and testing tasks
Non-destructive testing using active thermography
Easy Integration into Existing Processes

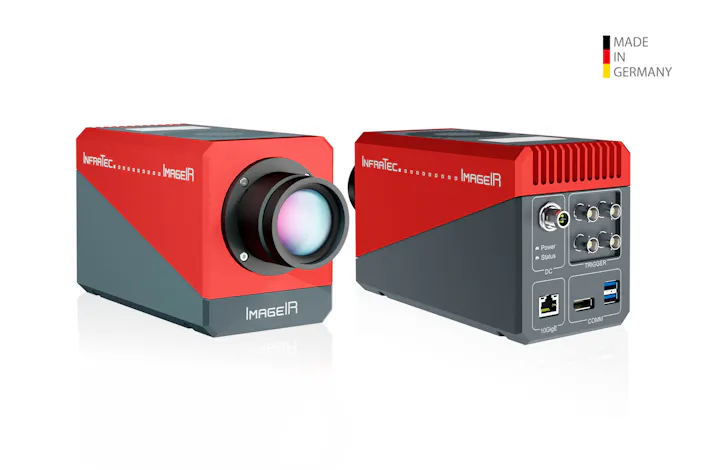

When it comes to integration, the ImageIR® compact proves practical: On-camera calibration data enables an easy plug-and-play installation. The camera is equipped with interfaces for reliable and fast data transmission (GigE) be integrated as well as for software integration and control (GenICam / GigE Vision). In addition, the ImageIR® compact enables highly precise and repeatable output of internal trigger signals as well as processing of external trigger signals. With all these features, the camera is a versatile tool for contactless measurement of temperature distributions and non-destructive testing using active thermography.
The ImageIR® compact can be conveniently operated and configured via a web interface. Power is supplied via a wide-range power supply or via PoE.
Technical Specifications
| Spectral range | (1.5 ... 5.7) µm |
| Pitch | 15 µm |
| Detector | InSb |
| Detector format (IR pixels) | (640 × 512) |
| Image recording principle | Snapshot |
| Aperture ratio | f/3.0 |
| Detector cooling | Stirling cooler, MTTF > 28,000 h |
| Temperature measuring range | (-10 ... 1.500) °C, up to 3,000 °C* |
| Measurement accuracy | ± 2 °C or ± 2 % |
| Temperature resolution at 30 °C | ≤ 0.015 K |
| Frame rate (full / half / quarter / sub frame) | Up to 150/570/1,020/5,000 Hz |
| Window mode | Yes |
* Depending on model
** In selected measurement ranges

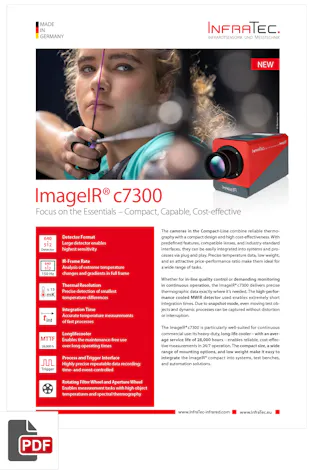

Data Sheet Camera Series ImageIR® c7300
