Configurable Infrared Cameras to Meet the Highest Demands
For the highest demands: Designed for complex measurement and testing tasks with outstanding performance characteristics
Custom tailored to your applications: Due to its modular design, you can configure your camera’s features according to your needs
Future-proof investments: Camera functionality and performance can be flexibly upgraded or adapted to new applications at any time.
Outstanding in every dimension: Highest spatial and temporal resolution combined with excellent measurement accuracy and variable spectral ranges
33 found
Virtually Limitless Versatility with Compact-Line

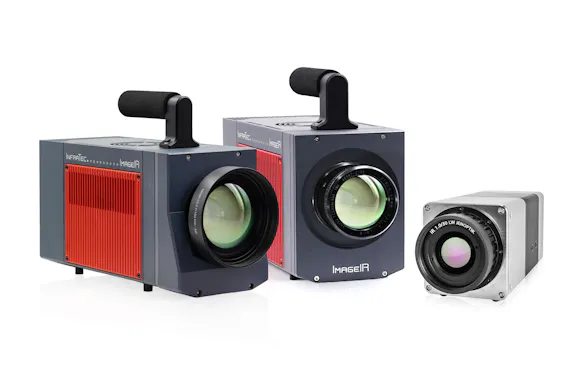

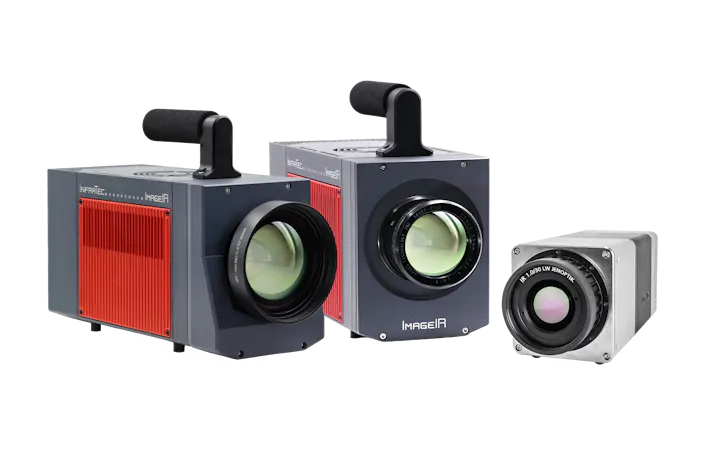

The Pro-Line includes all of InfraTec's configurable infrared cameras. In particular, the radiometrically calibrated models of the ImageIR® series, equipped with cooled photon detectors, impress with their maximum flexibility. These modular cameras allow for customization down to the finest detail to meet the specific needs of users. Upon request, they can be equipped with filter wheels, motor focus, internal memory, and features that enhance their performance. The HDR function, for example, enables precise radiometric measurements across extremely wide temperature ranges; the MicroScan function allows the spatial resolution to be quadrupled.
In addition to the ImageIR® camera series, the uncooled VarioCAM® models are also part of the Pro-Line. Designed for a wide range of complex measurement and monitoring tasks, these microbolometer cameras are characterized by their high ruggedness and durability.
Pro-Line cameras can be used for a wide range of applications or optimized specifically for particular measurement tasks. They impress not only with their excellent thermal and spatial resolutions and maximum frame rates. Their high-performance interfaces also enable fast and reliable data acquisition, transmission, and processing; convenient camera control; precise triggering; and seamless integration into existing processes and systems.
The comprehensive IRBIS® recording and analysis software, which can be customized for specific tasks, rounds off InfraTec's flexible thermography solutions.
Prices include thermography software
ImageIR® Pro-Line: starting at 48,300 EUR*
VarioCAM® High Definition Pro-Line: starting at 15,100 EUR*

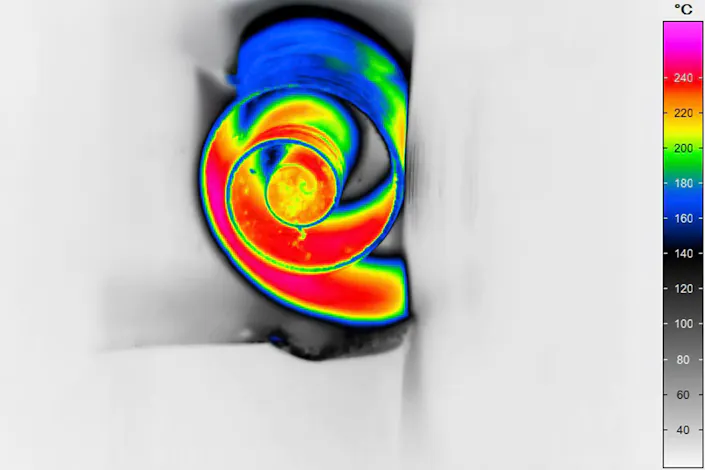

Thermography in Practical Applications
Image Formats of Pro-Line Cameras
| Detecor fomat / MicroScan resolution (IR pixels) | Spectral Ranges |
(2,560 × 2,048) | (1,920 × 1,536) | (1,280 × 1,024) / (2,560 × 2,048) | (1,280 × 1,024) | (1,024 × 768) / (2,048 × 1,536) |
(640 x 512) / (1,280 x 1,024) | (640 x 512) | (640 × 480) |
(320 x 256) |
| ImageIR® p12300 | MWIR / (3,4 ... 4,9) µm | ◼ | ||||||||
| ImageIR® p10300 | MWIR / (3,6 ... 4,9) µm | ◼ | ||||||||
| ImageIR® p9800 | LWIR / (7,7 … 12,5) µm | ◼ | ||||||||
| ImageIR® p9400 | MWIR / (1,5 ... 5,5) µm | ◼ | ||||||||
| ImageIR® p9400 hp | MWIR / (1,5 ... 5,5) µm | ◼ | ||||||||
| ImageIR® p9400 hs | MWIR / (1,5 ... 5,5) µm | ◼ | ||||||||
| ImageIR® p9300 | MWIR / (1,5 ... 5,5) µm | ◼ | ◼ | |||||||
| ImageIR® p8800 | LWIR / (7,7 ... 10,2) µm | ◼ | ||||||||
| ImageIR® p8300 hp | MWIR / (1.5 ... 5.5) µm | ◼ | ||||||||
| ImageIR® p8300 | MWIR / (1,5 ... 5,5) µm | ◼ | ||||||||
| ImageIR® p7300 | MWIR / (1,5 ... 5,7) µm | ◼ | ||||||||
| ImageIR® p5300 | MWIR / (3,7 ... 4,8) µm | ◼ | ||||||||
| ImageIR® p4300 |
MWIR / (3,7 ... 4,8) | ◼ | ||||||||
| VarioCAM® HD head |
LWIR / (7,5 ... 14) µm | ◼ | ||||||||
| VarioCAM® HDx head |
LWIR / (7,5 ... 14) µm | ◼ |
Properties of ImageIR® Pro-Line Cameras
Spatial resolution with detector formats with up to (2,560 × 2,048) infrared pixels
Control via web interface
Precise detection of smallest temperature differences
Increases frame rates and thermal resolution at the same time using binning technology
Analysis of high-speed dynamic temperature changes and processes
More flexibility for upgrades and changes of components
Flexible filtering by inbuilt two filter- / aperture wheels with up to 35 combinations
Precise triggering with only 10 ns jitter
Properties of VarioCAM® HD Pro-Line Cameras
High-end detectors with up to (1,024 × 768) infrared pixels
Available with unique opto-mechanical micro-scanner for up to (2,048 × 1,536) infrared pixels
Thermal resolution as low as 0.02 K
Frame rate up to 240 Hz
Cameras for fixed mount use in harsh process environments as well as for computer-assisted laboratory tasks
Configure Your Camera System
Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.
You Need More Information about High-end Cameras?
There is high-end camera matching perfectly your specific requirements. To find out which one it is, just check out all the models in detail.
*Prices are to be understood plus legal VAT without prior notice and shipping costs. Sales are exclusively for commercial customers, government and public institutions. Final prices depend on configuration.
