Infrared Camera Series

ImageIR® 9400

The benefits of the ImageIR® 9400 infrared camera are clearly based on its versatility. Especially users looking for a cooled camera with a high geometrical resolution will find an excellent solution with this model.

  • Cooled FPA photon detector with (1,280 × 1,024) IR pixels

  • Opto-mechanical MicroScan with (2,560 × 2,048) IR pixels

  • Extremely short integration times in the microsecond range

  • Thermal resolution up to 0.03 K

Infrared camera ImageIR® 9400 Series from InfraTec
Infrared camera ImageIR® 9400 from InfraTec
Thermal image of a soldering iron when a drop of water strikes
Infrared camera ImageIR® 9400 with interchangeable lenses from InfraTec
0 | 6
InfraTec Infrared camera
InfraTec-icon-detector-1280x1024
Detector Format

Efficient measurement of smallest structures on large-scale objects

InfraTec Icon 5.2MP MicroScan
MicroScan

(2.560 × 2.048) IR pixels by genuine camera hardware

full frame IR frame rate 180 Hz at 1,280 x 1,024 IR pixels
IR-Frame Rate

Analysis of extreme temperature changes and gradients in full frame

measurement accurancy 1%
Measurement Accuracy

Precise and highly repeatable measurements

InfraTec Icon 10 GigE
10 GigE Interface

High-speed, long-distance interference proof data transmission

InfraTec Calibration
HighSense

Flexible setting of temperature measurement ranges/integration times beyond calibration ranges

InfraTec-icon-motorfocus
Motor Focus

Precise, fast and remotely controllable; including multiple autofocus functions

Integ­rated Trigger and Process Inter­faces

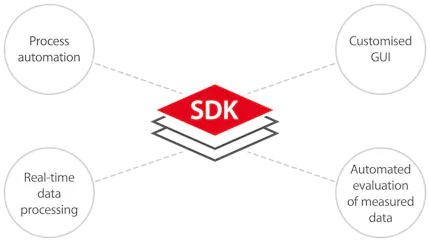

The camera series ImageIR® is equipped with a snapshot detector as well as with an internal trigger interface, which guarantees a repeatable high-precision triggering. Two respective in- and outputs are used to operate the camera or to generate digital control signals for external devices. Two digital channels of the data stream can be recorded synchronously with those trigger inputs. Additional digital and analogue in- and outputs are available in connection with the process interface IRBIS® 3 process. Furthermore, extra information will be saved directly with the images.

Detect Smal­lest Temper­ature Differ­ences Using High Thermal Resol­u­tion of 30 mK

The thermal resolution of the ImageIR® infrared camera series allows you to measure smallest temperature differences of Better than 0.03 K (at 30 °C). Thermal images with a narrow temperature span display details absolutely sharp. You will find interesting signatures even there where other infrared camera systems cannot detect any temperature differences any longer.

Take Advantage of the Modular Concept for Your Flex­ib­ility

The closed, industrial-suited, high-strength aluminium alloy housing is very compact and protects the sensitive sensors and electronics even during roughest applications. It impresses with its low weight. The modular design allows for an application-specific configuration and later adaptation to varying demands. The interfaces are equipped with push-on connectors to uphold the degree of protection.

HighSense for thermographic camera series ImageIR®

High­Sense – Always the Optimal Camera Setting

Cameras of the ImageIR® series have a reliable factory calibration. Thanks to HighSense, ImageIR® users have the option of setting up individual temperature measuring ranges based on the factory calibration that best suit the respective task.

Depending on the measuring task, the required temperature range can be selected and the optimum integration time for this purpose is calculated – or one decides to proceed in reverse order. Thus, the calibration can be retained even in the case of changed integration times.

The software also offers the possibility of storing a large number of such areas clearly arranged. Individually named and permanently stored, the operator can quickly access them. The same applies to changing, renaming and deleting profiles. HighSense is available for different camera models of the ImageIR® series. This function can optionally be added to systems already delivered.

Get further inform­a­tion about High­Sense

State­ments of our Customers

dots

As a scientist at Leibniz-Institut für Verbundwerkstoffe it is extremely important to me to use reliable and high-quality equipment to generate reproducible results. In my opinion, InfraTec’s camera systems are ideally suited for this purpose. Above all, the excellent workmanship and modular design of the products have convinced me as a customer and partner. With this in mind, we congratulate on InfraTec’s 30th anniversary and wish continued success in the future.

Vitalij Popow, Tailored & Smart Composites, Leibniz-Institut für Verbundwerkstoffe GmbH

The Climate Change and its impact on the Earth's environment is undeniable. Resulting draughts, prolonged and harsher winters and Urban Heat Islands are taking their toll on our quality of life, our health and condition of flora around us. MGGP Aero with help of multiple InfraTec's thermal imagers, is monitoring these changes from the air, delivering top quality aerial thermal imaging to Polish cities, district heating companies, National Parks and forest managers. Thanks to the speed, resolution and reliability of ImageIR® 9400, we have mapped over 2,500 km2 in past 2 years, providing valuable information about surface temperatures and their analyses, allowing decision makers to focus their actions in the right spot.

Karol Krajewski, Research & development specialist, MGGP Aero Sp. z o.o.

Detect More on Smaller Objects

A well-balanced range of interchangeable precise radiometric infrared lenses covers the fields of telephoto lenses, standard lenses, wide-angle lenses as well as macroscope and microscope lenses. This again, allows the adoption of the field of view for nearly each measuring situation. All changeable state-of-the-art standard optics of ImageIR® can be equipped with a motor focus unit. It allows for precise, remotely controlled and fast motorised focusing and is part of a reliable autofocus function. Due to a diversity of microscope lenses detailed images of electrical assemblies and components can be taken even from larger measuring distances with a pixel size of up to 5  µm.

Infrared camera ImageIR® series from InfraTec - Lenses

10 GigE Inter­face for a Strong Increase in Output

Thermographic camera series ImageIR® with new 10 GigE interface

The new 1  Gigabit Ethernet interface of the high-end camera series ImageIR® opens this extremely fast transmission standard with a NIC specially developed by InfraTec. This works with optical or electrical transceiver modules that are easy to change and are called SFP+. For all models of the ImageIR® 8300 hp with their (640 × 480) IR pixel detectors this leads to a transfer rate in the full frame mode up to 355 Hz. Users can store large quantities of data to a computer easily and reliably.

Different 10 GigE fiber SFP+ transceivers allow transmission ranges of up to ten kilometers with the same low sensitivity to electromagnetic interference. A corresponding standard SFP ensures backward compatibility with the conventional GigE interface. This combination allows the ease of use of the cameras with the new 10 Gigabit Ethernet interface in existing systems - though at a reduced transmission rate.

Get further inform­a­tion about the 10 GigE tech­no­logy

InfraTec accessories - SIL lens

Solid Immer­sion Lens (SIL) for ImageIR®

In order to make particularly small structures clearly visible, an infrared camera with a large detector format is suitable. In some cases, special measurement and testing tasks require a further increase in spatial resolution. In the field of micro-thermography, high-performance infrared microscopic lenses are used for this purpose. Their benefits can be further increased in conjunction with Solid Immersion Lenses (SIL). Mounted on the optics, these immersion media significantly improve the resolution of even the smallest structures in the µm range.

Maximum Flex­ib­ility of the Meas­ure­ment Options

The infrared camera is equipped with a separate filter and aperture wheel with up to six free positions which allows 30 combinations. A necessity for measurements of high object temperatures and spectral thermography.

Effect­ively Avoid Meas­ure­ment Errors

The smaller the pitch dimension of a camera, the smaller pixel sizes are possible to prevent geometrically induced measurement errors. The very small pitch of 10 μm, makes the ImageIR 9400 ideal for microthermography in electronics. In combination with an 8× microscope lens, the finest structures can be precisely resolved down to 1.3 μm.

Tech­nical Specific­a­tions

Spectral range(1.5... 5.5) µm
Pitch10 μm
DetectorInSb
Detector format (IR pixels)(1,280 × 1,024)
Image format with opto-mechanical MicroScan (IR pixels)(2,560 × 2,048)
Image recording principleSnapshot
Readout modeITR / IWR
Aperturef/2.2 or f/3.0
Detector coolingStirling cooler
Temperature measuring range(-40 … 1,500) °C, up to 3,000 °C*
Measurement accuracy± 1 °C or ± 1 %
Temperature resolution at 30 °CBetter than 0.03 K
Frame rateUp to 180 / 342 / 622 / 2.601 Hz
Window modeYes
* Depending on model
Field of View Calculator for Your Measurement Task

Configure Your Camera System

Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.

Field of View Calculator of the ImageIR® 10300
Soft­ware

Compre­hensive Ther­mo­graphy Eval­u­ation Soft­ware for Effi­cient Oper­a­tion

The software family IRBIS® 3, which was developed by InfraTec, is part of a complete system of the camera series ImageIR®. The comfortable and professional thermography software IRBIS® 3 professional offers a wide range of analysis- and editing tools to analyse sophisticated thermal investigations. The combination of ImageIR® together with the professional thermographic software meets all requirements that are set as standard for efficient high-performance tools for thermographic investigations.

Read more about ther­mo­graphy soft­ware IRBIS® 3

Analysis Software of Software Family IRBIS® 3

Product Flyer

Get all the information you need at a glance in our product flyers

InfraTec ImageIR 9400 Flyer
